MINI EXCAVATOR, BIG POWER

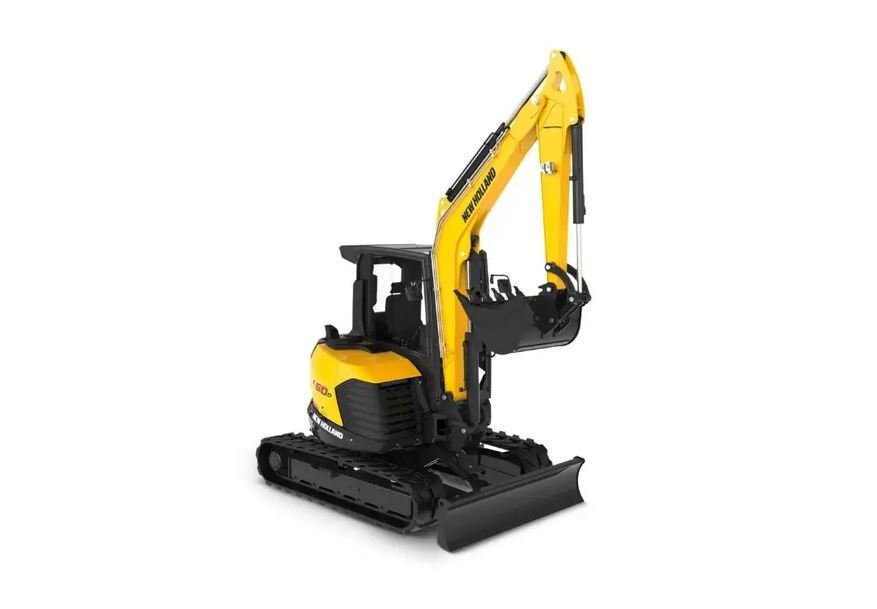

The E60D is powered by a 59.4 hp (44.3 kW) Stage V-certified Kubota V2607-CR-T engine, known for durability, low emissions and fuel-saving features like Eco Mode, auto idle and a reversible cooling fan to keep radiators clear and engines running at optimal temperatures. This power is housed in a compact and easily transportable package, measuring 8 ft 4 in (2550 mm) in height and 19 ft 8 in (6000 mm) in overall transport length.

ARMED TO DIG

Specify your D Series compact excavator with the arm length to best suit your requirements. Length on the E60D standard digging arm measures up to 5 ft 5 in (1.65 m) Arm and 6 ft 3 in (1.9 m) Arm with the long arm.

The standard arm yields 12 ft 8 in (3850 mm) of maximum digging depth and gets a maximum 13 ft 5 in (4100 mm) below surface with the long arm. With all this muscle, plus 7419 lbf (33 kN) of standard arm digging force, the E60D will quickly become your partner in productivity.

DESIGNED TO DUMP

The standard arm on the E60D provides a maximum 12 ft 8 in (3850 mm) of dump height and 11,915 lbf (53 kN) in bucket breakout force. If your operation requires a greater dump height, opt for the optional long arm that gets up to 13 ft 5 in (4080 mm) in maximum dump height.

SIMPLE SERVICEABILITY

For contractors and operators, serviceability is a key component to weigh when considering mini excavators. The E60D includes a tipping cab/canopy for full engine access, as well as three large side and rear panels that offer fast access to key service points. Just two bolts need to be removed to tip the cab.

ATTACHMENTS FOR DEDICATED EFFICIENCY

Powering demanding attachments is a key New Holland advantage.With the right attachment, New Holland's excavators can be used for a diverse range of jobs from fence installation to concrete breaking.The E60D arrives ready to run a wide array of attachments like hydraulic hammers, compaction plates, grapples and mulchers. Models are available with factory-installed couplers, buckets and thumbs.

DESIGNED FOR AND AROUND YOU

The E60D is available with a fully enclosed cab. This configuration is packed with comfort and safety features. In the cab, operators will find a fabric pneumatic suspension seat with automatic weight control, height-adjustable armrests, manual or automatic climate control; plus, six directional vents and intuitive joystick-mounted controls that move with the seat for smoother, more precise operation over uneven terrain.

Additional cab features include a sliding right-side window, overhead-opening front window, radio and speakers, rearview mirrors, front wiper/washer, USB and 12V charging ports and bottle holder. A seven-inch color LCD display provides a view to the back of the unit through the integrated rear view camera, real-time feedback on coolant and hydraulic oil temperatures, fuel levels, engine RPM, machine hours and DPF regeneration status. Safety-focused details include a control cut-out lever, manual/auto idle settings, RPM hand dial, a 2-inch seat belt, emergency exit hammer and keyed locks common to the ignition.
