MINI EXCAVATOR, BIG POWER

The​​​ 24.4 HP (18.2 kW) engine provides plenty of power to the load-sensing hydraulics for a smooth and efficient operation in this compact and easily transportable package, measuring 8 ft 2 in (2500 mm) in height and 15 ft 9 in (4790 mm) in overall transport length.

Slim frame posts ensure excellent all-round visibility, with good views of the boom and dipper. When working in a confined area, in urban areas, or between valuable crops such as in a vineyard, nursery or an orchard, you can operate a New Holland compact excavator with absolute precision for minimal disruption.

ARMED TO DIG

Specify your C Series compact excavator with the arm length to best suit your requirements. Length on the E37C standard digging arm measures up to 4 ft 3 in (1.3 m) and 5 ft 3 in (1.6 m) with the long arm.

The standard arm yields 10 ft 3 in (3135 mm) of maximum digging depth and gets a maximum 11 ft 3 in (3440 mm) below surface with the long arm. With all this muscle, plus 4390 lbf (19.52 kN) of standard arm digging force, the E37C will quickly become your partner in productivity.

DESIGNED TO DUMP

The standard arm on the E30C provides a maximum 11 ft 3 in (3425 mm) of dump height and 6900 lbf (30.6 kN) in bucket breakout force. If your operation requires a greater dump height, opt for the optional long arm that gets up to 11 ft 10 in (3615 mm) in maximum dump height.

In addition, the available Object Handling Kit allows you to raise heavy, suspended loads using a lifting hook on the bucket linkage.

AMPLE BOOM SWING ANGLES

The E37C has a left swing angle of 75 degrees and a right swing angle of 50 degrees. A larger left swing angle improves visibility to the side of the door for a more precise operation. Ample boom swing angles allow for efficient parallel digging, good for working alongside obstacles. Plus, forgoing the need to reposition the machine means you can complete the job faster.

Boom pivot pins are secured by plate and bolt to reduce lateral movement and provide reliable performance in tough conditions. Plus, the pins give way to a long service life and lower whole-life operating costs.

EFFICIENT, POWERFUL, DEPENDABLE

New Holland mini excavators are compliant with Tier 4 Final emission regulations and employ different after-treatment technologies to achieve this. Each model has a power unit selected to match the excavator's size and capacity. This ensures optimized performance and fuel economy. To further enhance economy, the E37C is fitted with Auto-idle.

When the hydraulics or traction motors are not demanding oil, the engine speed is reduced to idle with no input required from the operator. This feature can be turned on or off via a simple switch on the main console. Auto-idle works to reduce wear, fuel consumption and engine noise.

ATTACHMENTS FOR DEDICATED EFFICIENCY

Powering demanding attachments is a key New Holland advantage. With the right attachment, New Holland's excavators can be used for a diverse range of jobs from fence installation to concrete breaking. Job site versatility is bound to soar with the added advantage of high constant hydraulic flow and quick coupler.

The Hydraulic Quick Coupler allows for hands-free coupling and release of buckets. Plus, safely swap between large, heavy attachments. Mechanical quick lock attachment brackets are also available.

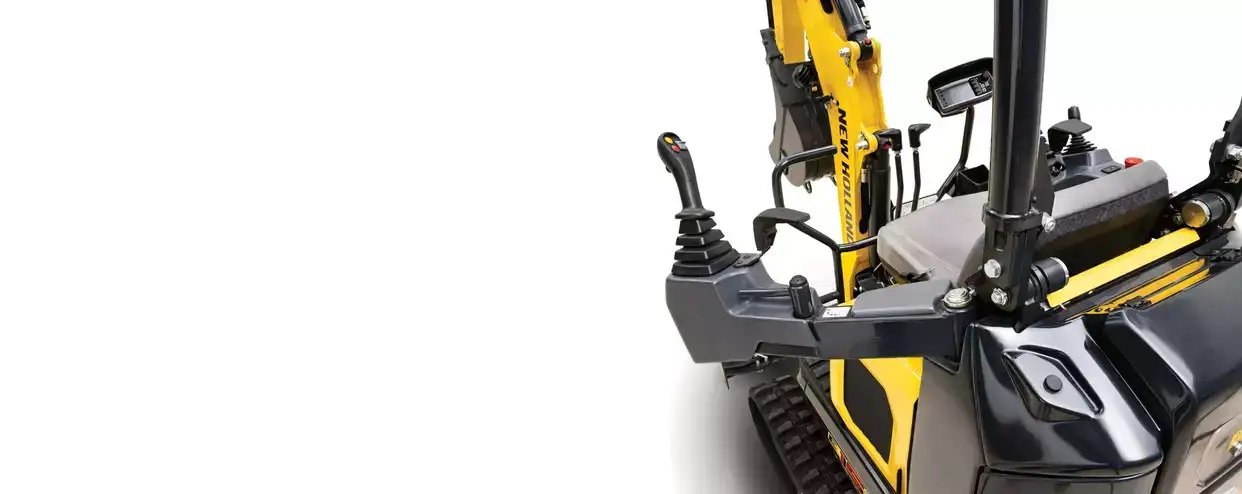

DESIGNED FOR AND AROUND YOU

New Holland's E37C compact excavator can be fitted with either a canopy or full cab. The cab carries a 8,300 lb (3765 kg) operating weight and a 7,990 lb (3625 kg) operating weight on the canopy with rubber tracks, full fuel tank, operator and bucket. Additionally, the E30C is TOPS (tip-over), FOPS (falling-object) and ROPS (roll-over) compliant to protect the precious cargo inside. Low noise and vibration levels, an adjustable suspension seat, adaptable wrist rests and Bluetooth® radio* ensure you can work for extended periods in comfort with no compromise in operator safety.

Further improve productivity and reduce downtime with simplified daily checks when all key check and service points are grouped together. Plus, every New Holland mini excavator will come with New Holland Fleetforce™ Telematics and advanced data subscription.

*Bluetooth® radio available on cab units only.
