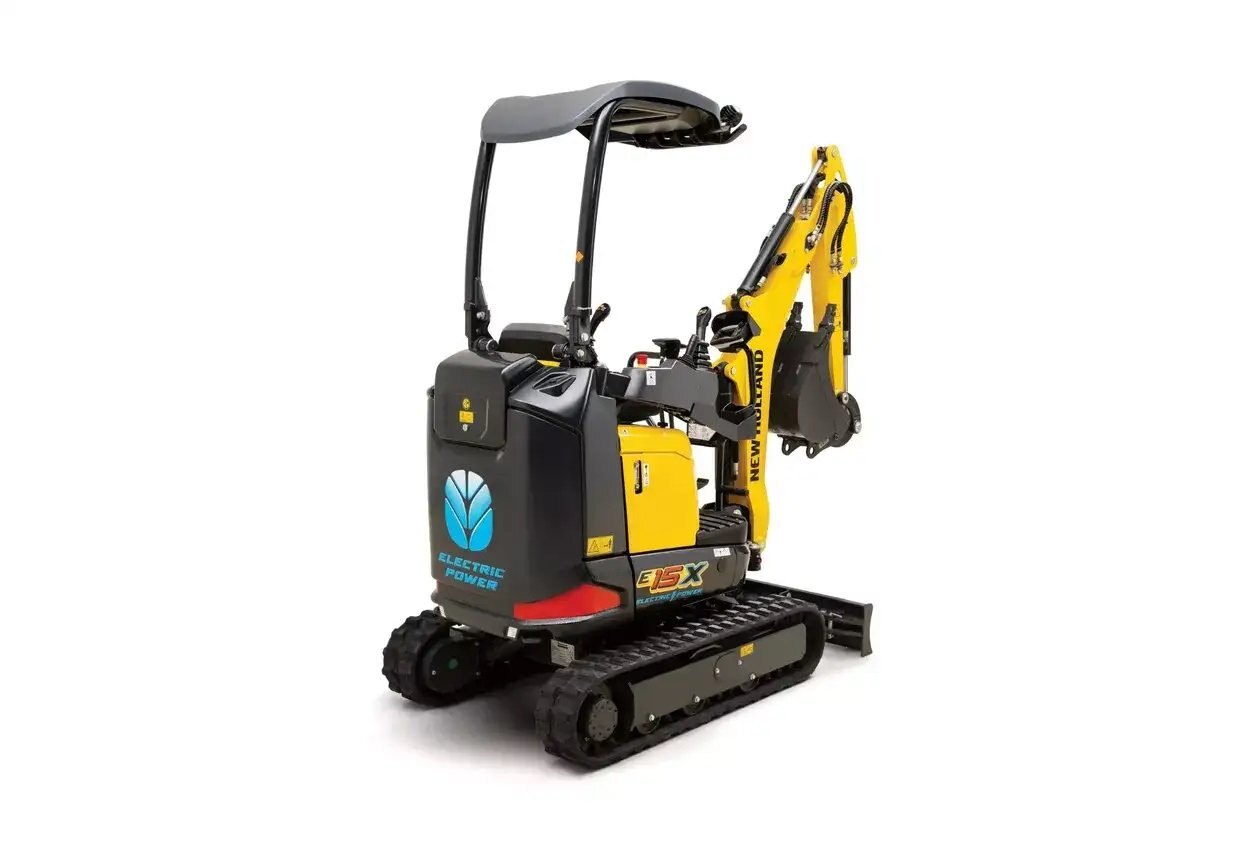

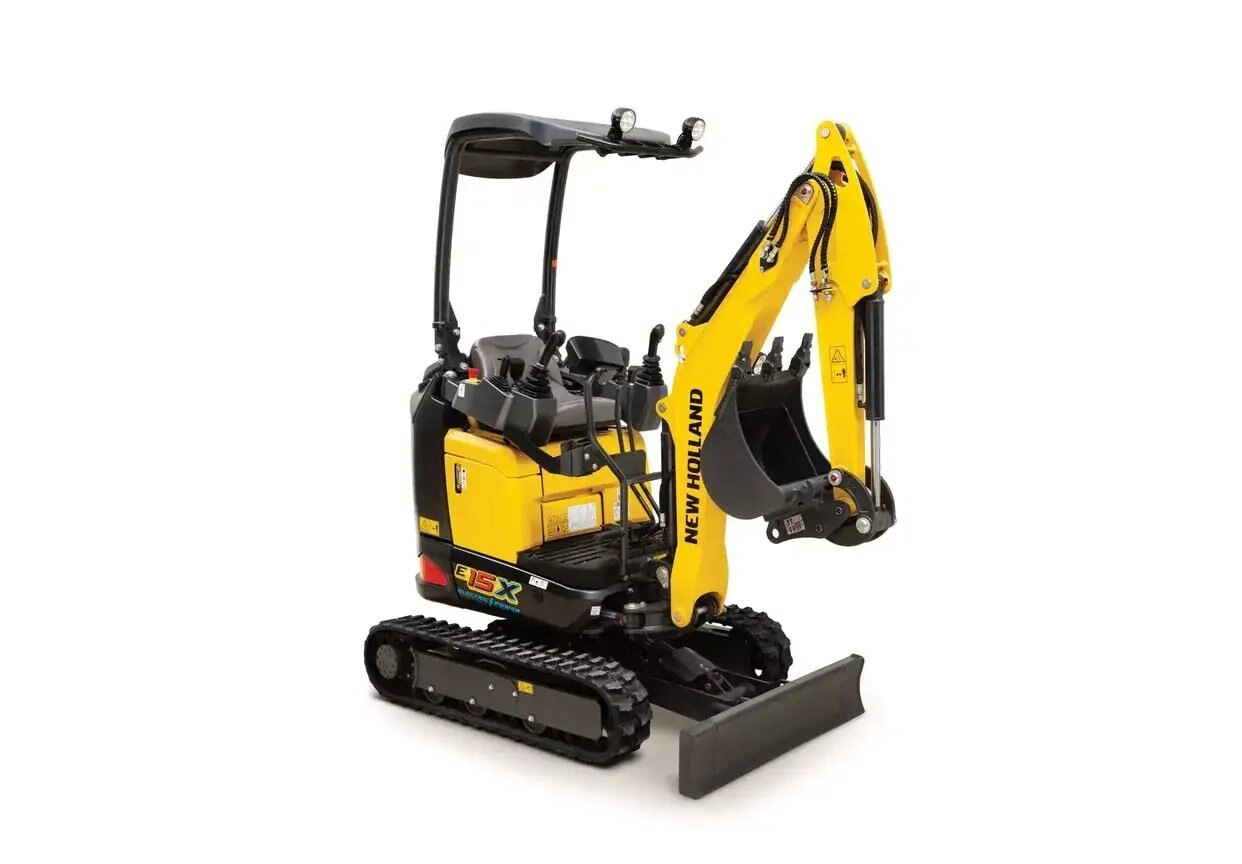

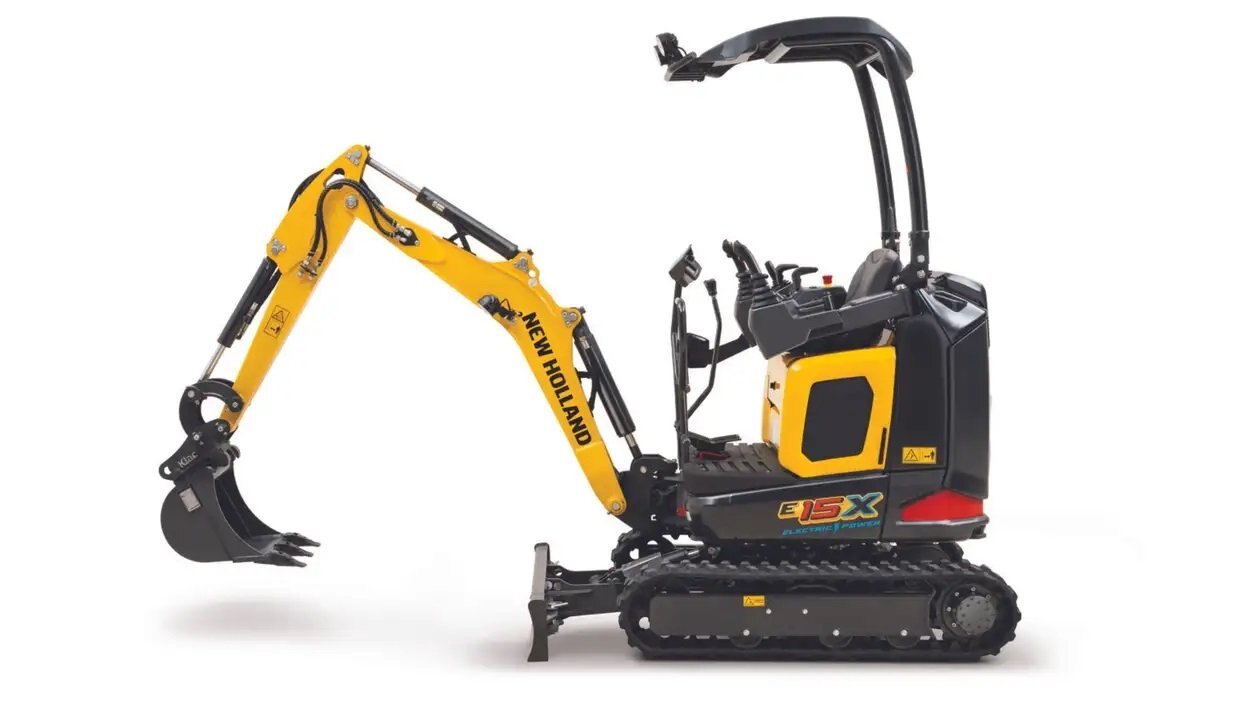

MINI EXCAVATOR, BIG POWER

The​​​ 21.4 gross capacity (16 kW) lithium ion battery provides plenty of power to the load-sensing hydraulics for a smooth and efficient operation in this compact and easily transportable package, measuring 7.5 ft (2.300 m) in height.

The E15X is designed to be a champion on your indoor job site. A minimum tail swing overhang of 6​ in (152 mm) with tracks that hydraulically retract to 31.1 in (790 mm) overall width to easily fit through doorways and then expand to 41.3 in (1050 mm), allowing for an operation that's smooth as butter.

DESIGNED TO DUMP

The standard arm on the E15X provides a maximum 7 ft 5 in (2.290 m) of dump height and 2600 lbf (1150 daN) in bucket breakout force. If your operation requires a greater dump height, opt for the optional long arm that gets up to 7 ft 8 in (2.380 m) in maximum dump height.

In addition, the available Object Handling Kit allows you to raise heavy, suspended loads using a lifting hook on the bucket linkage.

AMPLE BOOM SWING ANGLES

The E15X has a left swing angle of 70 degrees and a right swing angle of 60 degrees. A larger left swing angle improves visibility to the side of the door for a more precise operation. Ample boom swing angles allow for efficient parallel digging, good for working alongside obstacles. Plus, forgoing the need to reposition the machine means you can complete the job faster. Operators can take full control of the boom swing from the electro-proportional switch on the left joystick.

Boom pivot pins are secured by plate and bolt to reduce lateral movement and provide reliable performance in tough conditions. Plus, the pins give way to a long service life and lower whole-life operating costs.

EFFICIENT, POWERFUL, DEPENDABLE

You'll find how the E15X has the flexibility to fit your needs with an optional long arm to allow for longer reach or deeper digging, two-speed travel modes, and a standard two-way dozer blade that expands for stability and retracts to fit through doorways or gates.

Beyond all this, our E15X comes with three work modes to balance energy consumption and power needs. P – power for max performance at 2800 RPM, S – standard for normal work operations at 2600 RPM and E- economy at 2400 RPM to optimize energy consumption.

*Low Battery mode (2200 max RPM) automatically engages when battery level reaches 10% and further reduces power consumption.

ATTACHMENTS FOR DEDICATED EFFICIENCY

Powering demanding attachments is a key New Holland advantage. With the right attachment, New Holland's excavators can be used for a diverse range of jobs from fence installation to concrete breaking. Job site versatility is bound to soar with the added advantage of high constant hydraulic flow and quick coupler.

The Hydraulic Quick Coupler allows for hands-free coupling and release of buckets. Plus, safely swap between large, heavy attachments. Mechanical quick lock attachment brackets are also available.

DESIGNED FOR AND AROUND YOU

Standard digital color LCD monitor provides easy battery management and access to machine settings. The 5.7 in (14.5 cm) touchscreen helps to keep your operation in motion when key machine details are easily accessible - such as engine speed, coolant and hydraulic oil temperature and maintenance information including fault codes and diagnostics. Further improve productivity and reduce downtime with simplified daily checks when all key check and service points are grouped together.

Plus, every New Holland Electric Excavator will come with New Holland Fleetforce™ Telematics advanced data subscription.
