The New Holland Construction Small Articulated Loader (SAL) line introduces a groundbreaking solution for operators, excelling in smaller tasks with exceptional lifting capability. Offering the perfect blend of commodity and convenience, these machines provide operators with enhanced visibility, spacious cabs, and a range of attachments for seamless multitasking on any surface.

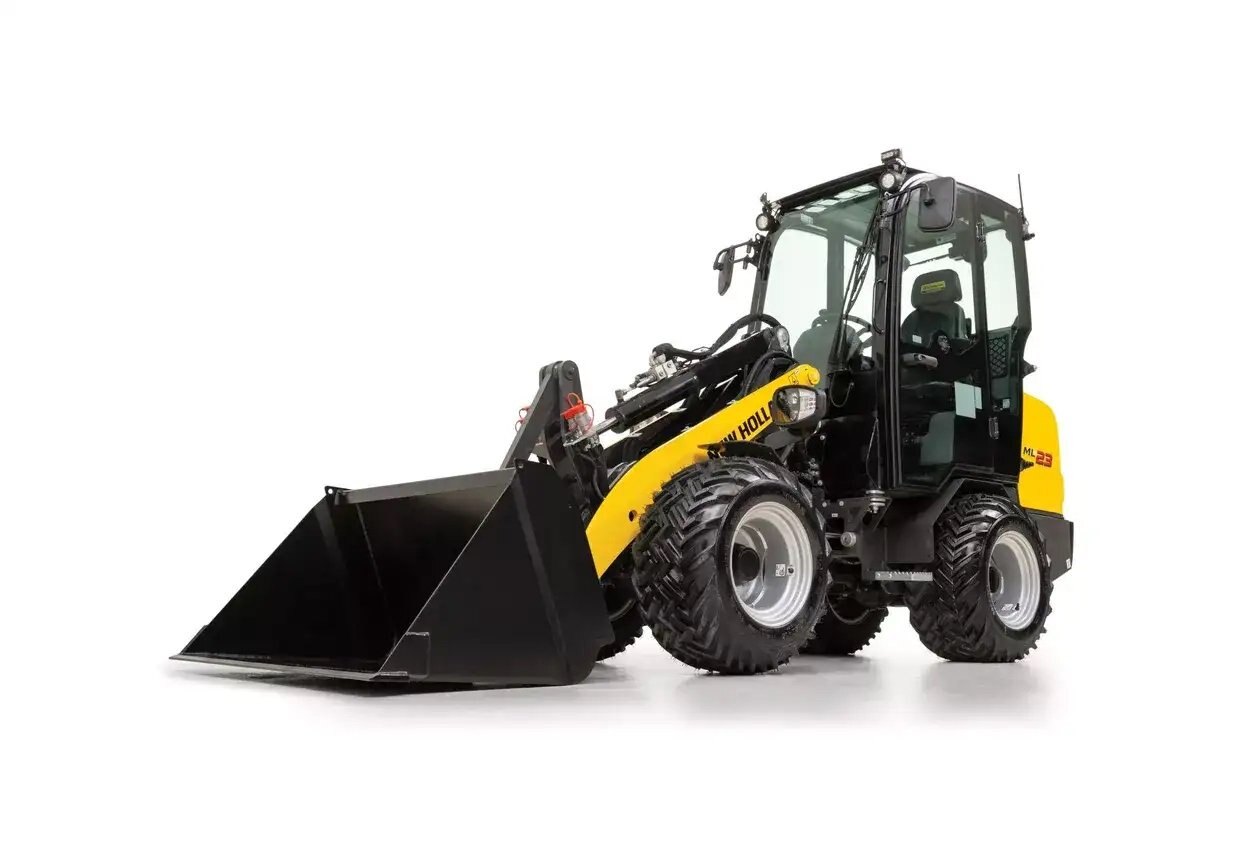

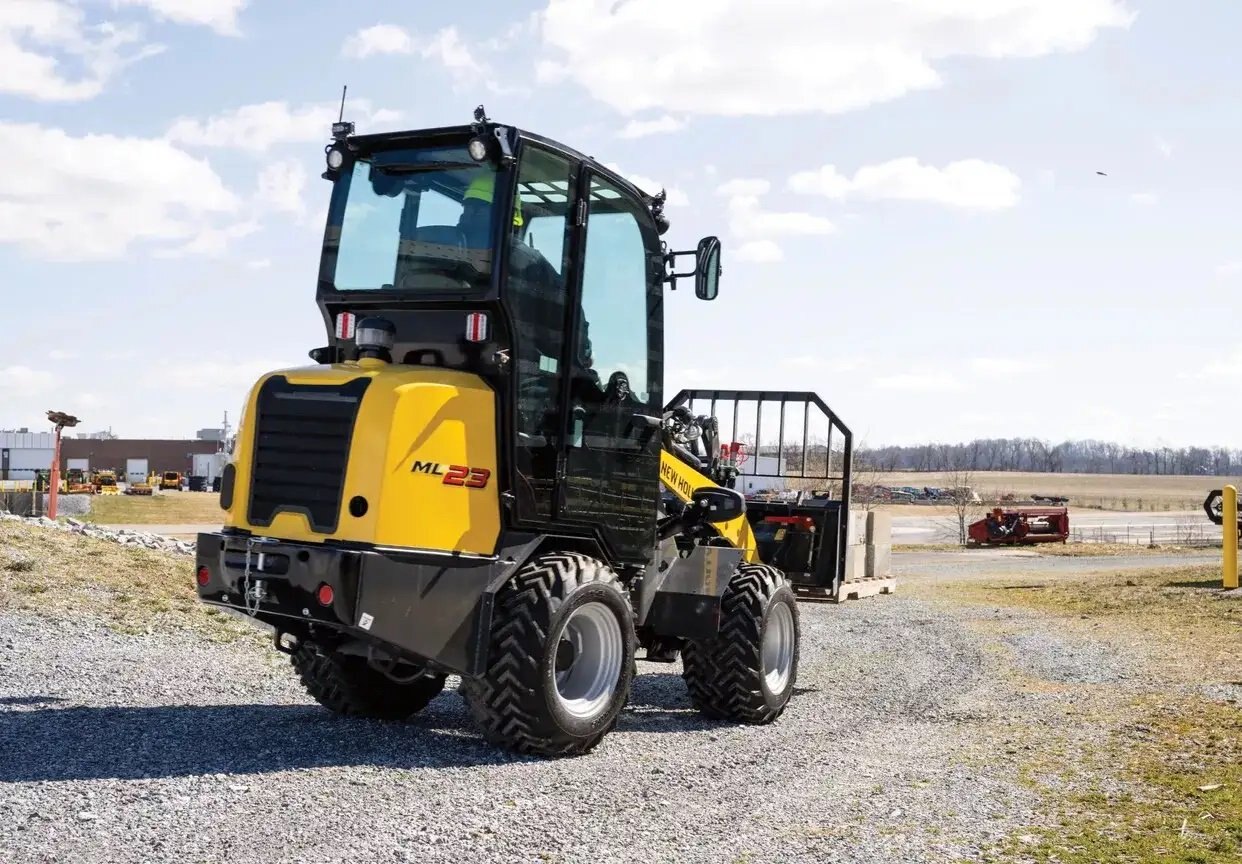

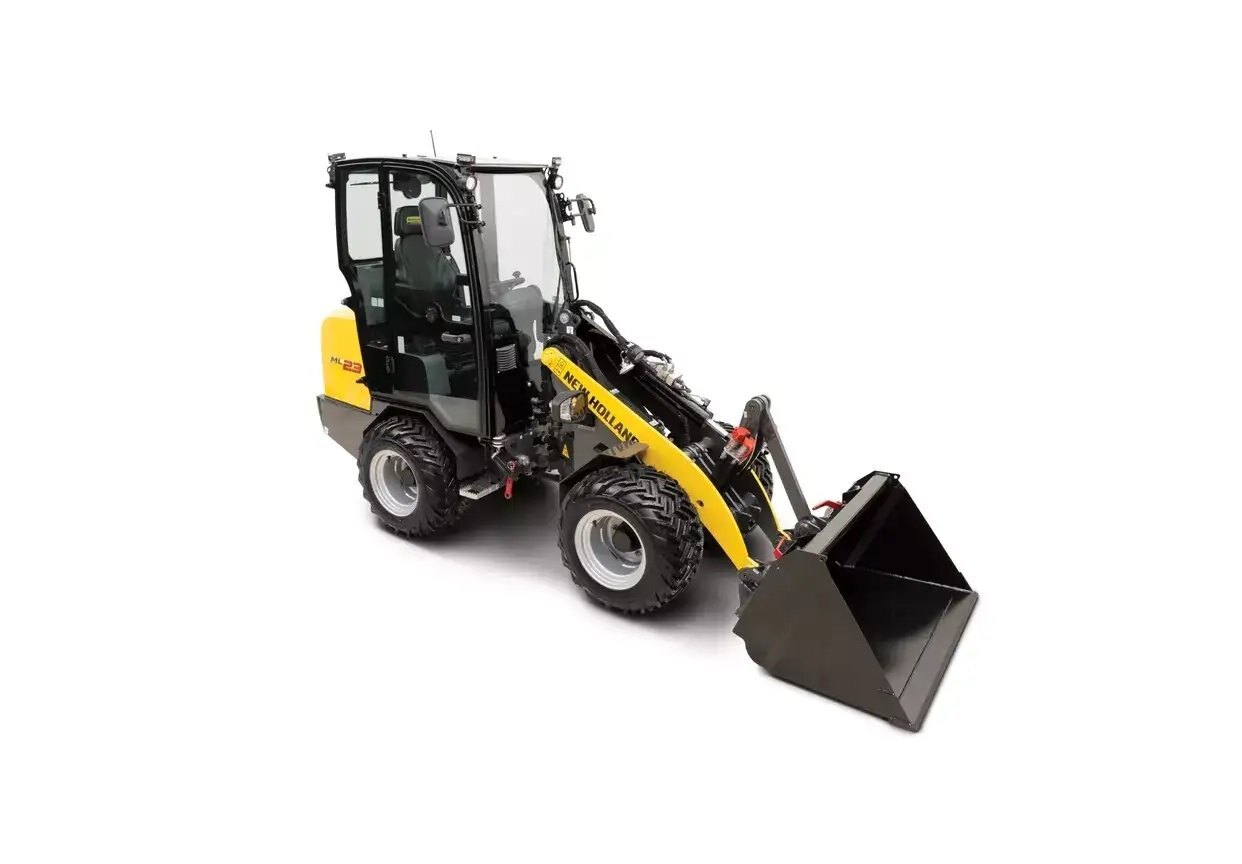

The new small articulated loader (SAL) line from New Holland equips operators with the compact power to get more done. The effective combination of strength, versatility, and the light footprint makes the ML23 exceptional for smaller tasks on any surface. A force to be reckoned with, the impressive lifting capacity handles loads with ease. Discover the various features that seek to enhance stability and safety in the ML23.
With a narrow width of 48.4 inches (1230mm) and overall height of 90.6. inches (1230 mm), the ML23 is suitable for landscapers focused on clearing sidewalks or fenced-in areas with limited space. Machine length without a bucket comes in at 123.8 inches (3145 mm) and 150.8 inches (3830 mm) with bucket.
The small articulated loader series provides unmatched agility to maneuver in tight spaces. Perfect for various landscaping and light construction jobs, these machines are just the right size for snow and debris removal on sidewalks and in backyards, hauling landscaping materials, removing fallen trees or for working on jobsites with sensitive surfaces. Don't be misled when reading 'small' in all this talk regarding New Holland's small articulated loaders; the compact size still provides powerful lifting capabilities.
STRENGTH AND STABILITY
Jobsites and tasks requiring heavy machinery power delivered through a compact package can turn to New Holland's small articulated loaders. The ML23 model showcases a lifting capacity of 4,850 lbs (2200 kg), maximum tipping load capacity of 4,982 lbs (2260 kg) and lifting height of 96.5 inches (2450 mm).
The 26 HP (19.4 kW) machine boasts a 5,181 lbs (2350 kg) operating weight, allowing for minimal ground disturbance when turning or hauling on soft ground like turf. The ML23 comes fitted with an open cab, ROPS/FOPS safety roof and a 62.2 inch (1580 mm) wheelbase. The low center of gravity allows for stable operations, contributing to seamless and precise performance.
A RANGE OF POSSIBILITY
Model ML23's lift allows operators to load and unload materials from large trucks and the reach provides more flexibility in dumping, leveling and grading tasks. The 26 HP (19.4 kW) machine excels at dumping and loading on the job site by providing 96.5 inches (2450 mm) of lifting height and 66.1 inches (1680 mm) of dumping height
Key loader features of the ML23 include hydrostatic 4-wheel drive and a SSL compatible attachment coupler with a huge selection of available attachments, allowing the ML23 to tackle any job you need done.
WHEN COMPACT MEETS CONVENIENT
STRENGTH AND STABILITY
A RANGE OF POSSIBILITY
ML23_Spec Sheet_NHC7130238305.pdf
