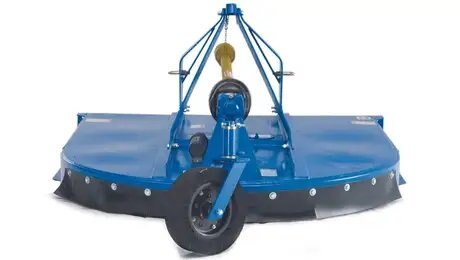

New Holland Mid-Duty Rotary Cutters 738GC

Call for Price
Overview

DURABLE CONSTRUCTION

Heavy-duty components designed for high performance and longevity; including a strengthened A-frame, tailwheel boom and bracket.

HEAVY-DUTY DECKS AND GEARBOX

A rugged four-plate slip clutch, flexible top link and a 3/16 in. (4.76 mm) deck ring provide extra protection.

BETTER BLADES

Heavy-duty 3/8 x 3 in. (9.5 x 3 mm) or 1/2 x 4 in. (12.7 x 4 mm), heavy-duty high-vacuum blades give you a smooth, clean cut.

STAY CLEAR OF DEBRIS

Bolt-on-counter-sunk skid plates are designed so they won't catch debris. Cuttings and debris are dispersed for uniform results.

TAKE CARE OF THE TUFF STUFF

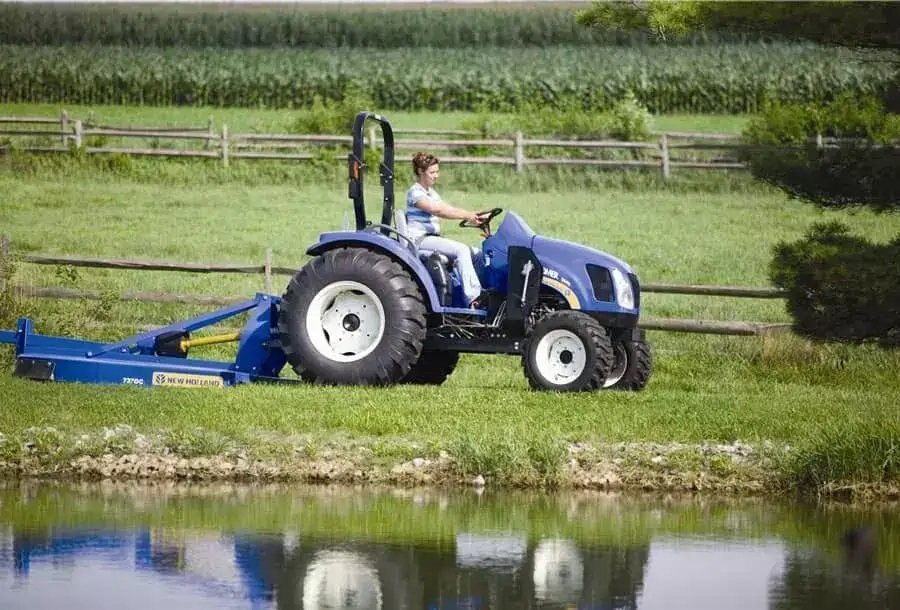

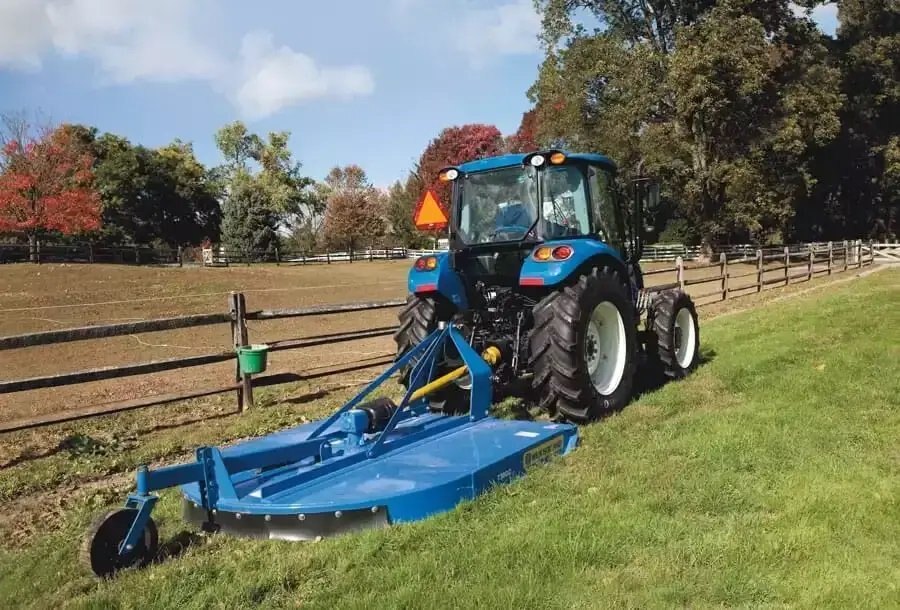

Tall grass, thick weeds and medium-to-heavy brush are no match for 700 Series mid-duty rotary cutters. Designed for years of reliable mowing on medium to larger properties, they're heavier, stronger and have greater cutting capacity than the competition. These cutters are available in 60, 72 and 84 in. (154, 183 and 213 mm) cutting widths and designed for use with 30-65 horsepower compact and utility tractors.



Specifications
Model
Mid-Duty Rotary Cutters
Category Name
Equipment
Year
2025
Sale Type
New
Manufacturer
New Holland
Hitch
3-Point
Deck Gauge
7 Gauge
Tire & Wheel
Laminated
Blade Carrier
Pan
Slip Protection
Slip Clutch
Gearbox Warranty
3 Years
Driveline Category
Category I
Weight (lbs. (kg))
1065 (483)
Blade Size (in. (mm))
1/2 x 4 (12.7 x 102) Updraft
Blade Tip Speed (540)
17,300
Cutting Width (in. (mm))
84 (2134)
Gearbox Rating (hp (kW))
65 (48.5)
Overall Width (in. (mm))
90 (2286)
Overall Length (in. (mm))
122 (3099)
Side Panel Depth (in. (mm))
8 (203) x 7 Gauge
Max Tractor Horsepower (hp KW))
65 (48.5)
Output Shaft Diameter (in. (mm))
2 (51)
Minimum Cutting Height (in. (mm))
2 (51)
features

New Holland Mid Duty Rotary Cutters 738GCDURABLE CONSTRUCTION

Heavy-duty components designed for high performance and longevity; including a strengthened A-frame, tailwheel boom and bracket.

New Holland Mid Duty Rotary Cutters 738GCHEAVY-DUTY DECKS AND GEARBOXES

Rugged four-plate slip clutch, flexible top link and 3/16 in. (4.76 mm) deck ring provide extra protection, and a five-year gearbox warranty limited to defects in workmanship and materials ensures peace of mind.

New Holland Mid Duty Rotary Cutters 738GCBETTER BLADES

Heavy-duty 3/8 x 3 in. (9.5 x 3 mm) or 1/2 x 4 in. (12.7 x 4 mm), heavy-duty high-vacuum blades give you a smooth, clean cut.

New Holland Mid Duty Rotary Cutters 738GCSTAY CLEAR OF DEBRIS

Bolt-on counter-sunk skid plates are designed so they won't catch debris, and a larger discharge area and rounded rear deck improves cutting performance by dispersing cuttings and debris for uniform results.
