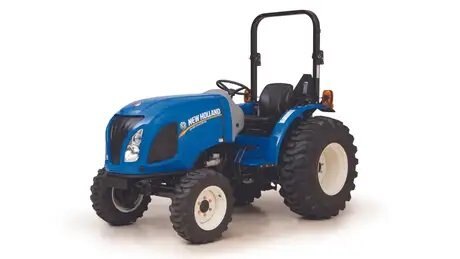

New Holland WORKMASTER™ Compact Series - WORKMASTER™ 40

Call for Price
Overview

RUGGED DESIGN, FUEL-EFFICIENT POWER

WORKMASTER™ compact tractors feature the same sturdy buckle-up driveline design found on New Holland agricultural tractors. The powerful, fuel-efficient 3-cylinder diesel engine helps you tackle your toughest tasks.

EASY ON AND OFF

The roomy operating platform gives you an open path to the seat, which is padded for maximum comfort. The clutter-free design allows for a clear, unobstructed view. Controls and pedals are perfectly positioned for easy access.

VERSATILE TRANSMISSION

Choose between a 12 x 12 synchronized shuttle or a hydrostatic transmission for your WORKMASTER compact tractor. You'll be operating like a pro in no time using its well placed, clearly marked and color coded controls.

BOOMER GUARD⁶

You get the peace of mind of New Holland’s Boomer Guard⁶ Limited Warranty that includes 2 years of FREE “bumper-to-bumper” coverage plus an extra 4 years of powertrain protection.

THE VERY DEFINITION OF VALUE

WORKMASTER™ compact tractors deliver outstanding value for their performance. They are versatile and functional, whether you maintain a food plot, tend to a small herd of livestock or work in professional landscaping. These reliable, powerful, and easy-to-operate tractors help you tackle your to-do list without breaking the bank.



Specifications
Model
WORKMASTER™ Compact Series
Category Name
Tractors
Year
2025
Sale Type
New
Manufacturer
New Holland
Weight Lb
3067
Aspiration
Turbocharger
Engine Make
LS Mtron
Engine Model
L3C19-T4
Wheelbase In
67.5
PTO Power Hp)
34
Displacement In³
114.7
Drive Configuration
4WD
Number Of Cylinders
3
Rated Engine Power (hp)
40
Number Of Forward Speeds
12
Number Of Reverse Speeds
12
Transmission Description
Standard: Gear w/ Synchronized Shuttle 12x12 | Optional: Hydrostatic (HST) - 3 Ranges
Classification Horsepower
40
Tank Capacity Gallon (US)
7.4
Max Power (No Boost) (hp)
24.4
features

New Holland WORKMASTER™ Compact Series WORKMASTER™ 40ENGINE

WIELD THE POWER TO TAME TOUGH JOBS

You can rely on your WORKMASTER™ tractor for years of dependable, trouble-free performance. Turbocharged, large-displacement three-cylinder engines deliver improved power and torque, while still being quiet and fuel-efficient. The 35- and 40-horsepower engines feature a common rail, direct-injected, electronic fuel management system.

New Holland WORKMASTER™ Compact Series WORKMASTER™ 40TRANSMISSION

MORE SPEED CHOICES

Select a 12 x 12 synchronized shuttle or a hydrostatic transmission on your WORKMASTER™ compact tractor. Whichever option you choose, you’ll find the working speeds you need to get the job done.

New Holland WORKMASTER™ Compact Series WORKMASTER™ 40AXLES

TRACTION ENHANCING FOUR-WHEEL DRIVE (4WD)

4WD comes standard on all WORKMASTER™ compact tractors. 4WD dramatically improves your productivity in wet, slippery and sandy conditions by providing additional traction and improving drawbar pull.

New Holland WORKMASTER™ Compact Series WORKMASTER™ 40PTO

INDEPENDENT POWER TAKE OFF (PTO)

WORKMASTER™ compact tractors come standard with 540 RPM rear PTO power. That means you can power 3-point hitch implements like rotary tillers or rotary cutters with ease. Mid- or front PTO implements are also a great choice thanks to the 2000 RPM mid-PTO power, which is optional on units equipped with 3-range hydrostatic or 12x12 gear transmission.

New Holland WORKMASTER™ Compact Series WORKMASTER™ 40HITCH & HYDRAULICS

DESIGNED FOR BIG LIFTING POWER

High-capacity hydraulics deliver a dedicated flow of 8.2 gallons per minute (gpm), or 7.9 gpm for the WORKMASTER™ 25. The powerful design allows for a three-point-hitch lift capacity of 1,808 pounds. This robust system allows you to handle a wide variety of implements to make the most of your working time. A separate steering pump ensures responsive steering, no matter what other hydraulic demands are made on the tractor.

New Holland WORKMASTER™ Compact Series WORKMASTER™ 40OPERATOR PLATFORM

DESIGNED FOR OPERATOR COMFORT

No other small tractor manufacturer packs more ergonomic features into their “value” tractors than New Holland. You’ll appreciate the lack of clutter and the simple, straightforward instrumentation on the spacious operator platform.

New Holland WORKMASTER™ Compact Series WORKMASTER™ 40LOADERS

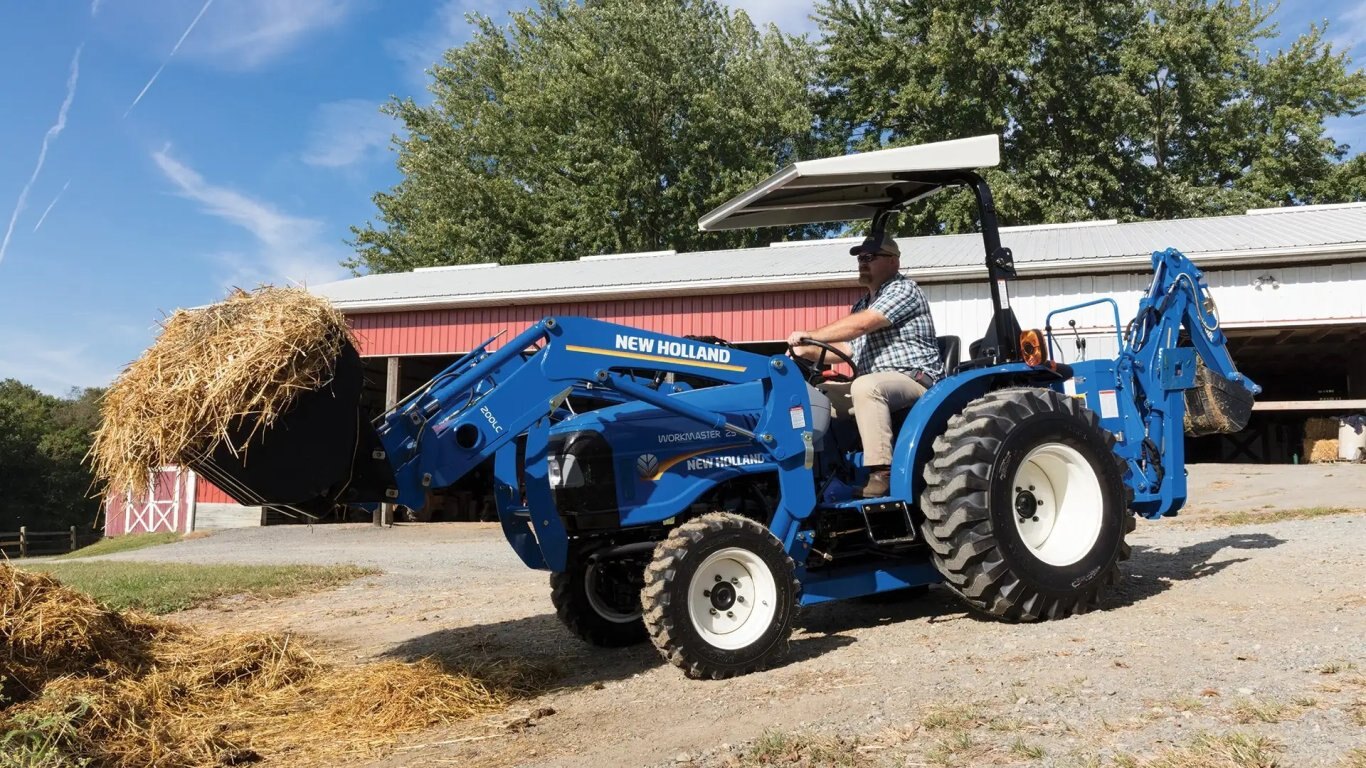

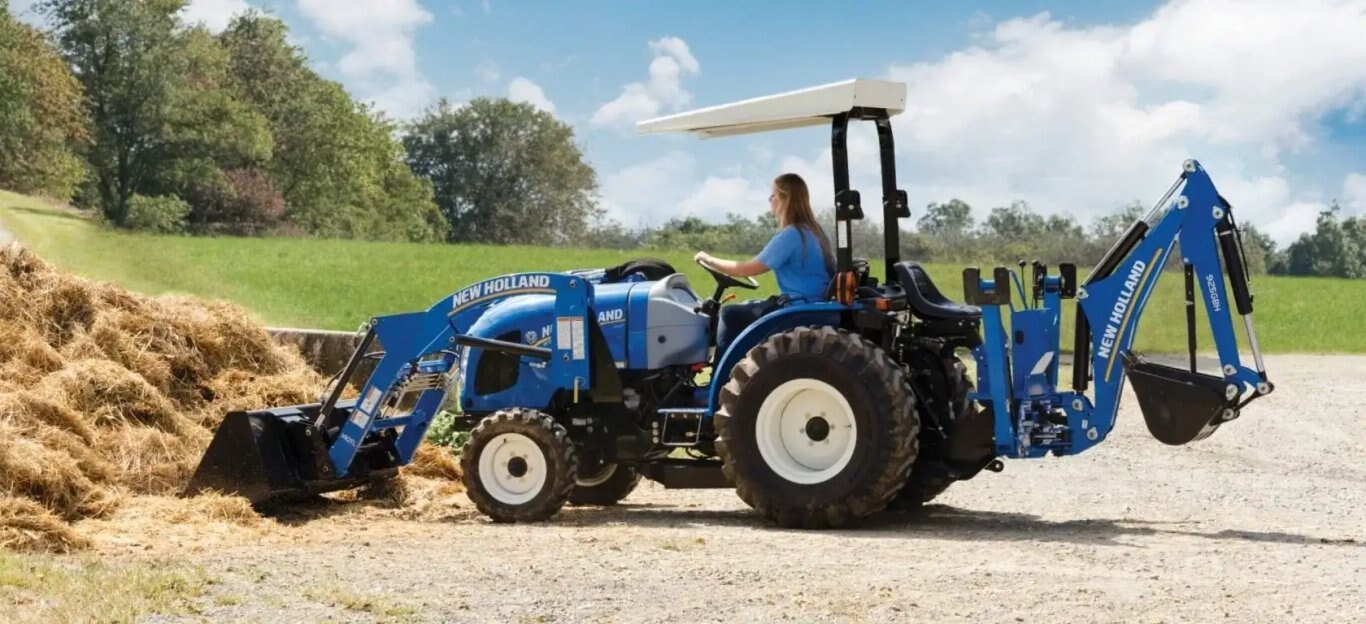

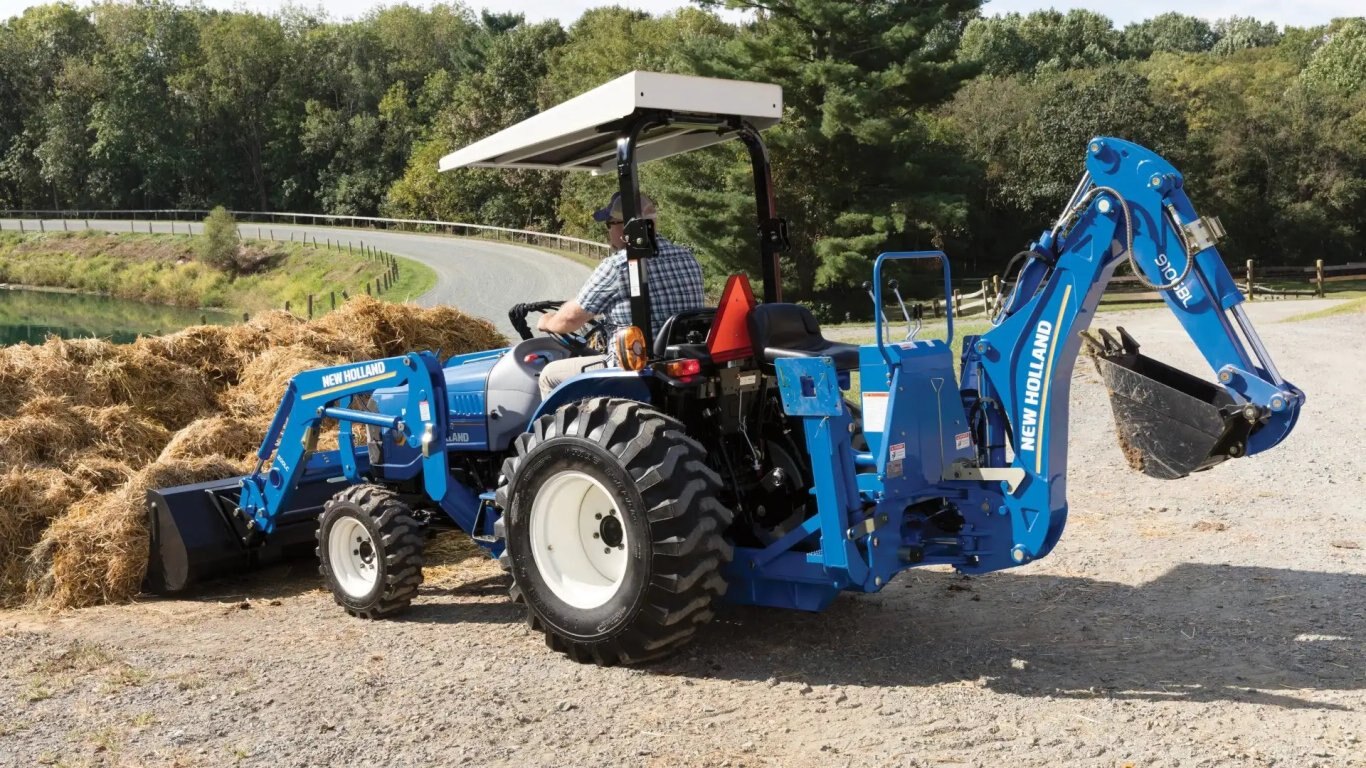

OUTSTANDING VERSATILITY, STRENGTH AND VISIBILITY

You will get performance matched capability whether you choose a WORKMASTER™ 25 and 200LC loader combination or a WORKMASTER 35/40 with 140TL loader. These loaders are designed specifically to the tractor's capability ensuring maximum performance. WORKMASTER has you covered when you need to move gravel, mulch, plants, dirt or hay quickly and efficiently.

New Holland WORKMASTER™ Compact Series WORKMASTER™ 40MAINTENANCE

REMOVING THE HURDLES TO ROUTINE MAINTENANCE

New Holland helps save time and money when it comes to maintenance. WORKMASTER™ tractors offer convenient access to service points, making fueling and performing routine maintenance quick and easy.
